vcap

skinless tab recording, driven from the devtools console.

download

[download] vcap-0.1.0.zip

chromium extension — unpacked install. chrome, edge, brave, arc, vivaldi, opera.

install

  1. unzip the downloaded archive
  2. open chrome://extensions, toggle developer mode on, click load unpacked, and select the unzipped vcap/ folder
  3. open chrome://extensions/shortcuts and confirm the hotkey is set (default ⌘⇧V on mac, ctrl⇧V elsewhere)

source

  • github: link tbd
  • issues, pull requests, and feature discussion live on the repo

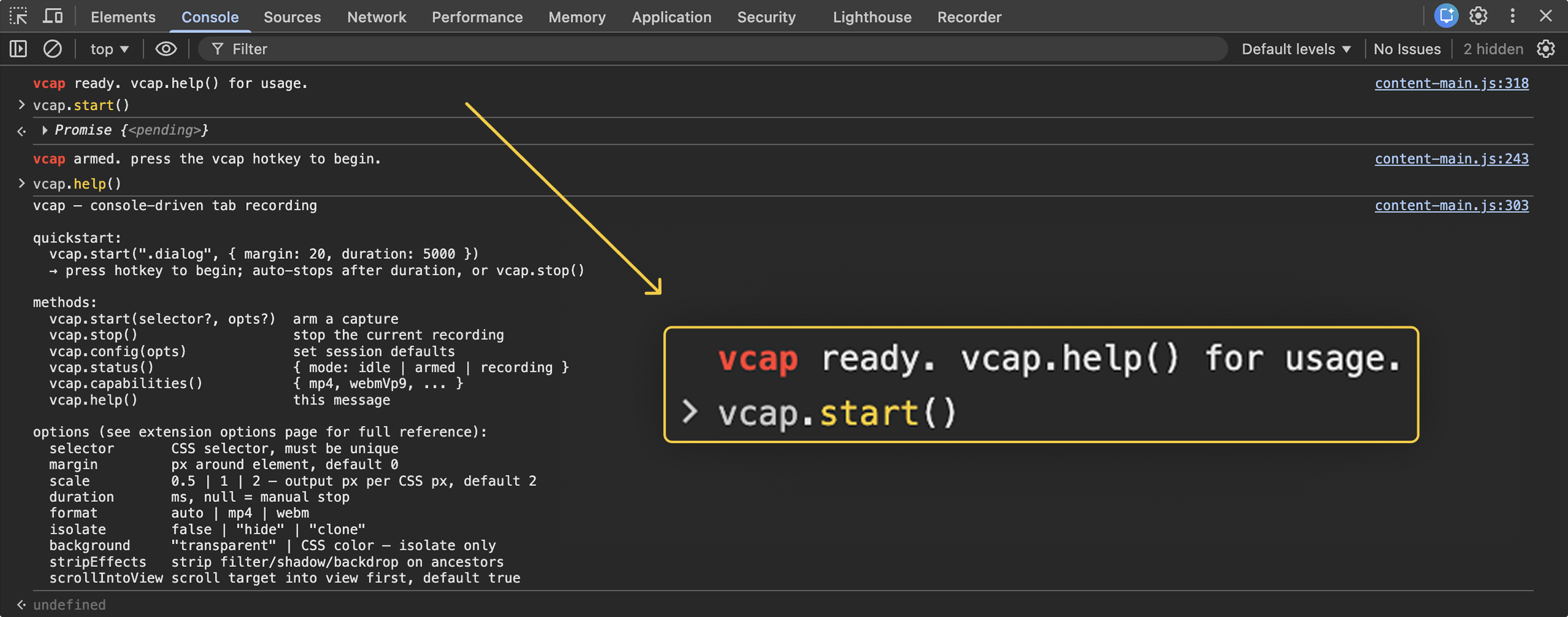

  • console reference: vcap.help() inside any devtools console after install

quickstart

  1. open devtools on any page ⌘⌥I / F12 → console tab
  2. type a command and press enter
    vcap.start('.dialog', { margin: 20, duration: 5000 })
  3. press the hotkey to begin. recording auto-stops after the duration (or press the hotkey again to stop manually). file downloads.

api

vcap.start(selector?, options?)
arm a capture. validates the selector and options, applies isolation/scroll, and stores the pending config. press the hotkey to actually begin recording.
accepts either vcap.start('.selector', {…}) or vcap.start({ selector: '.x', … }).
omit selector (or pass no args) to record the entire viewport.
vcap.stop()
stop the current recording. equivalent to pressing the hotkey while recording. if auto-stop (duration) is set, this isn't needed.
vcap.config(options)
set per-session defaults in the current page. later calls to vcap.start() inherit these unless overridden. returns the merged config.
vcap.status()
returns { mode: 'idle' | 'armed' | 'recording' }.
vcap.capabilities()
returns the current browser's encoder support: { mp4H264, webmVp9, webmVp8, webmAlpha }.
vcap.help()
print a compact reference to the console.

options

name type default notes
selector string | null null css selector. must match exactly one element. null = full viewport.
margin number 0 css px of surrounding context added to the crop rect.
scale 0.5 | 1 | 2 2 output px per css px. capped at device dpr (retina = 2). use 1 or 0.5 for smaller files.
duration number | null null milliseconds. null = manual stop via hotkey or vcap.stop().
format 'auto' | 'mp4' | 'webm' 'auto' auto picks mp4/h264 when opaque, webm/vp9 when transparent. mp4 has no alpha — transparent recording forces webm.
isolate false | 'hide' | 'clone' false false = record in-context. 'hide' hides other elements via visibility. 'clone' is reserved (falls back to 'hide' in v0.1).
background string | null null only valid with isolate. 'transparent' forces webm. otherwise a css color string.
stripEffects boolean false removes filter, backdrop-filter, box-shadow, mix-blend-mode on ancestors of the target. recompose in post.
scrollIntoView boolean true scrolls the target into the viewport before arming.
filename string | null null output filename without extension. null = timestamped.

hotkey

default binding: ⌘⇧V on mac, ctrl⇧V elsewhere.

rebinding lives in chrome's native shortcut manager — it's authoritative, so vcap doesn't try to reimplement it. paste chrome://extensions/shortcuts into the address bar (chrome-scheme urls can't be linked from web pages) and edit the binding there.

recipes

record a dialog with context

vcap.start('.dialog', { margin: 20, duration: 5000 })

transparent capture of an isolated element

vcap.start('button.primary', {
  isolate: 'hide',
  background: 'transparent',
  stripEffects: true,
  margin: 12
})

quarter-size quick test

vcap.start('.hero', { scale: 0.5, duration: 2000 })

full viewport, manual stop

vcap.start()

pin session defaults (this page only)

vcap.config({ scale: 1, format: 'webm', margin: 16 })

transcode webm → prores 4444 for editing

ffmpeg -i vcap.webm -c:v prores_ks -profile:v 4444 -pix_fmt yuva444p10le out.mov

notes

  • vcap needs <all_urls> content scripts so window.vcap is present in every page's console. no network access, no page data is transmitted.
  • starting a recording requires a user gesture (the hotkey). console calls to vcap.start() can't start tabCapture directly — chrome blocks that for security.
  • mp4 in-browser (h264) does not support alpha. transparent output is always webm; transcode to prores 4444 if you need a davinci-friendly alpha file.
  • scale above device dpr (supersampling via the chrome debugger api) is not in v0.1. retina gives you 2x for free.
  • built for chromium browsers. not compatible with firefox or safari.
  • the extension's own options page (chrome extensions → vcap → details → extension options) adds live panels the static site can't: defaults form, capabilities probe, recording history.
